Kev ua cov khoom nta

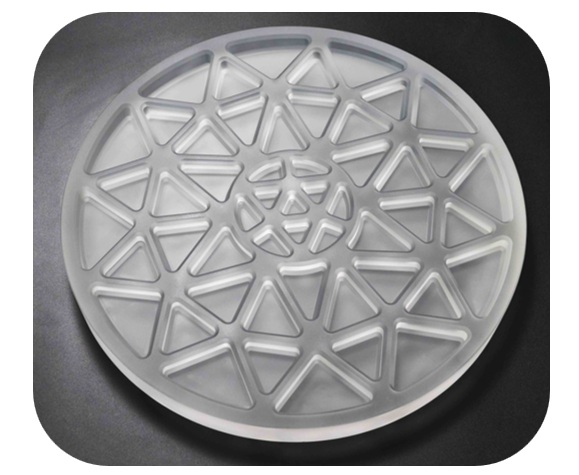

Cov khoom ua haujlwm yog quartz iav tsom iav nrog qhov tshwj xeeb ntawm D408x20.5mm. Cov txheej txheem tseem ceeb yuav tsum tau ua yog cov kab noj hniav chamfer sib tsoo txheej txheem. Lub lens no yog cov khoom siv kho qhov muag tshwj xeeb rau cov cuab yeej saib hnub qub thiab yuav tsum ua kom tau raws li cov qauv siab -precision 0.02mm contour thiab Ra0.8μm nto roughness tib lub sijhawm.
Kev lag luam ua cov ntsiab lus mob
Hauv kev ua haujlwm siab -kawg kho qhov muag khoom tsim, muaj peb qhov kev cuam tshuam loj rau quartz iav ua rau lub sijhawm ntev:
Qhov teeb meem ntawm ntug vau tshwm sim los ntawm cov khoom siv brittleness (ib txwm ntug vau tus nqi 0.433mm)
Nws yog ib qho nyuaj rau stably ua tau raws li tus qauv rau cov uas tsis yog - spherical nto contour raug
Qhov kev pheej hmoo ntawm sub-nto puas tsuaj los ntawm kev txiav cov cua sov
Thaum lub tuam txhab siv cov cuab yeej sib tsoo ib txwm siv, nws yuav siv sijhawm ntau dua 8 teev los ua ib qho thiab tseem tsis tuaj yeem ua tau raws li qhov yuav tsum tau ua. Tus nqi seem yog siab li 35%, uas txwv nruj rau cov txheej txheem ntau lawm ntawm siab -kawg kho qhov muag.
Kev tsim kho tshiab ntawmMIDKev daws
Raws li kev pom ntawm lub cev thiab tshuaj lom neeg ntawm quartz iav, MID R & D pab pawg tau siv ob qho kev ua haujlwm tseem ceeb:
Multi-lub hom phiaj ultrasonic ntsuab milling system: integrated axial vibration thiab radial nyiaj them ua haujlwm
Variator ultrasonic ua tshuab: ruaj khov amplitude tswj nyob rau hauv thaj tsam ntawm 4-6μm
Txheej txheem txawj tej yam ntxiv
Cov ntaub ntawv tsim tawm tiag tiag qhia tau tias qhov kev daws teeb meem ua tiav ntau- kev txhim kho kev ua tau zoo:

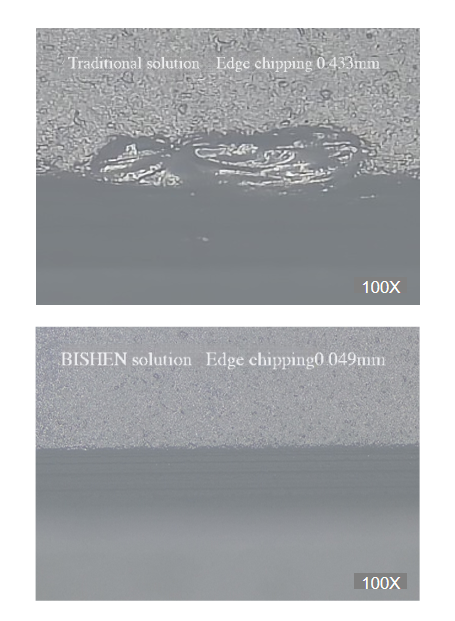

1.Edge tsoo tswj: 0.049mm (txo 88.7%)
2.Surface zoo: Ra＜0.6μm (25% zoo dua li kev lag luam tus qauv)
3.Contour raug: 0.015mm (nce 33.3%)
4.Kev ua haujlwm tau zoo: ib zaug -cov sijhawm ua haujlwm tau txo qis rau 3.2 teev
Tshwj xeeb tshaj yog nyob rau hauv cov nqe lus ntawm kev tiv thaiv thaum tshav kub kub, qhov kub ntawm lub workpiece txiav cheeb tsam poob los ntawm 42 degree, zoo zam kev puas tsuaj xws li microcracks.
【TxogMID】
Nrog ntau tshaj 10 xyoo ntawm kev paub hauv precision manufacturing,MIDtau tsom mus rau kev tshawb fawb thiab kev loj hlob ntawm cov txheej txheem tshwj xeeb xws li ultrasonic machining thiab laser micromachining, pab cov tuam txhab tsim khoom hauv aerospace, optical instruments thiab lwm yam kev lag luam, thiab tam sim no tau dhau los ua cov kev xav tau kev daws teeb meem rau siab -kawg brittle cov khoom ua.
