Nyob rau hauv kev lag luam ntawm precision manufacturing, ib leeg siv lead ua silicon yog lub npe hu ua "pob zeb ntawm cov ntaub ntawv hnub nyoog" - los ntawm smartphone chips mus rau optical Cheebtsam ntawm qhov chaw satellites, los ntawm lub zog tshiab photovoltaic hlwb mus rau cov tub ntxhais cov cuab yeej ntawm quantum xam, no siab - purity, nyob ze - cov khoom siv lead ua zoo meej yeej ib txwm ua lub luag haujlwm txhawb kev txhawb nqa. Raws li semiconductor technology nkag mus rau hauv cov txheej txheem hauv qab no 3 nanometers thiab photovoltaic cell efficiency lov los ntawm theoretical txwv, kev ua lag luam cov kev cai rau ib leeg siv lead ua silicon ua raug tau dhia los ntawm micron qib mus rau nanometer theem. Tshwj xeeb tshaj yog nyob rau hauv kev ua cov txheej txheem nyuaj xws li nkhaus electrode drilling, qhov tsis sib xws ntawm qhov siab brittleness ntawm cov khoom, cov khoom siv lead ua kev taw qhia cleavage yam ntxwv thiab nanometer -theem aperture kam rau ua tau dhau los ua ib qho tseem ceeb ntawm kev txwv txoj kev loj hlob ntawm kev txiav-ntug industries xws li siab -kawg particle} kuaj thiab siab.
Kev Lag Luam Breakthrough Record
Ultra-sib sib zog nqus micro- qhov ua ntawm ib leeg siv lead ua silicon: los ntawm "caj dab" mus rau "Suav daws"
Case keeb kwm

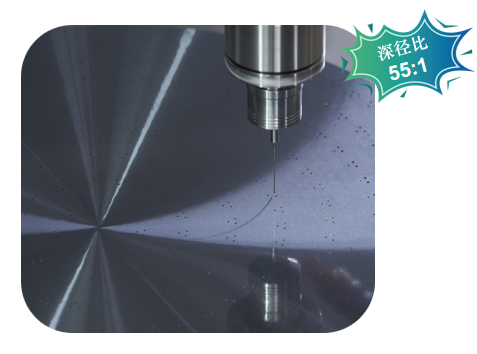

Thaum lub tuam txhab ua lag luam khoom siv semiconductor tau tsim cov khoom tseem ceeb ntawm 3D NAND cia chips, nws tau ntsib qhov kev sib tw loj ntawm ultra- tob micro- qhov ua ntawm ib qho siv lead ua silicon: nws yog qhov tsim nyog los ua cov micro- qhov nrog txoj kab uas hla ntawm tsuas yog 0.45mm ntawm silicon substrate nrog ib lub thickness ntawm 24.75mm. (qhov tob-rau- txoj kab uas hla ntawm 55: 1), thiab nws cov kev xav tau precision tau muab piv rau "carving ib mais{10}} tob tob ntawm cov plaub hau". Yav dhau los, hom txheej txheem no tau ntev tau monopolized los ntawm cov tuam txhab Japanese thiab German. Cov tuam txhab tsim khoom hauv tsev tsis tsuas yog yuav tsum tau them tus nqi ntshuam ntau dua 10,000 yuan ib thooj, tab sis kuj tau ntsib kev pheej hmoo ntawm cov khoom siv hluav taws xob los ntawm kev thaiv kev siv tshuab.
Pain point direct attack
Precision tsis tswj: Tom qab ua tiav nrog cov tsoos carbide xyaum, lub qhov phab ntsa roughness Sa Ntau dua lossis sib npaug ntawm 6.54μm (3 npaug ntawm cov qauv kev lag luam), thiab qhov sib txawv ntawm qhov sib txawv ＞ 0.025mm, ncaj qha ua rau muaj kev nce siab hauv nti teeb liab kis tus nqi poob;
Yield foom: Tus nqi ntawm monocrystalline silicon raw cov ntaub ntawv suav txog ntau dua 60%, tab sis cov teeb meem xws li ntug vau thiab microcracks ua rau cov khoom seem ntawm cov khoom ua haujlwm siab li 35%, thiab lub tuam txhab kev poob txhua xyoo ntau tshaj 20 lab yuan;
Technology qhov sib txawv: Cov khoom siv txawv teb chaws txwv tsis pub Suav tuam txhab lag luam los ntawm kev siv cov txheej txheem algorithm xws li "dynamic vibration suppression", thiab tsis muaj cov txheej txheem loj hauv tsev los hloov nws.
MID Solution
MID precisionmachining ntse daws cov teeb meem saum toj no los ntawm ultrasonic auxiliary system + nanocrystalline PCD laum me ntsis, ua tiav plaub qhov kev cuam tshuam:
Tool Life Myth:Ib qho kev xyaum PCD tuaj yeem ua haujlwm tsis tu ncua 2,000 qhov, uas yog 20 lub sijhawm ntev dua li lub neej ntawm cov cuab yeej siv, thiab tus nqi raug txo kom tsawg dua 5 yuan ib qhov;

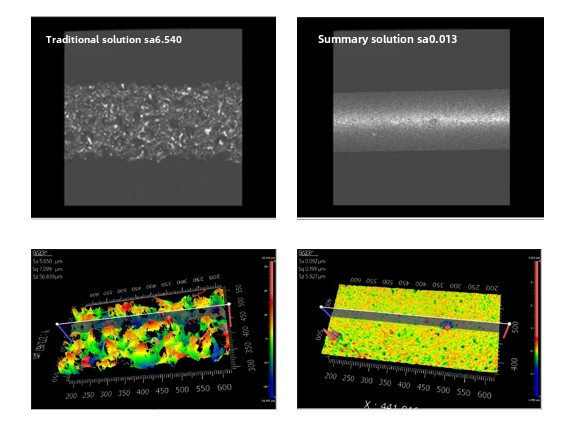

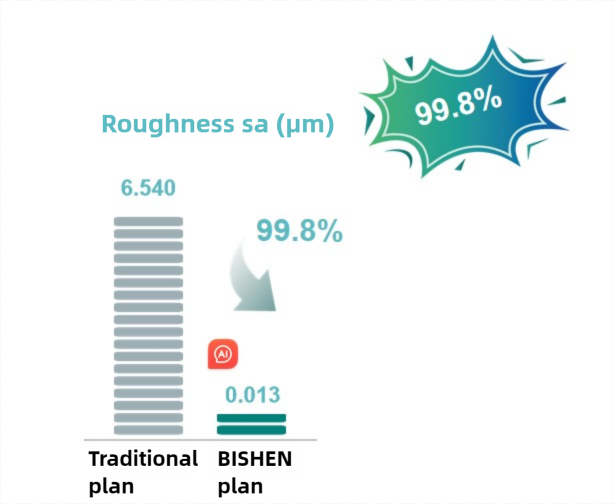

Nano-theem nto kiv puag ncig:Lub qhov phab ntsa roughness Sa yog txo los ntawm 6.54μm mus rau 0.013μm (qhov txo qis ntawm 99.8%), uas zoo dua li aerospace optical iav polishing txuj (ISO 10110-8);
Zero defect processing:Lub ntug vau tus nqi ntawm qhov nkag yog xoom, thiab qhov yuam kev roundness raug txo mus rau 0.003mm (sib npaug rau 1/3 ntawm txoj kab uas hla ntawm tib neeg cov ntshav liab);
Sib sib zog nqus - mus rau - txoj kab uas hla piv txwv:55: 1 kev muaj peev xwm ua rau tawg 2030 thev naus laus zis node kwv yees los ntawm International Technology Roadmap rau Semiconductors (ITRS) thiab ncav cuag tus qauv 7 xyoo ua ntej ntawm lub sijhawm.

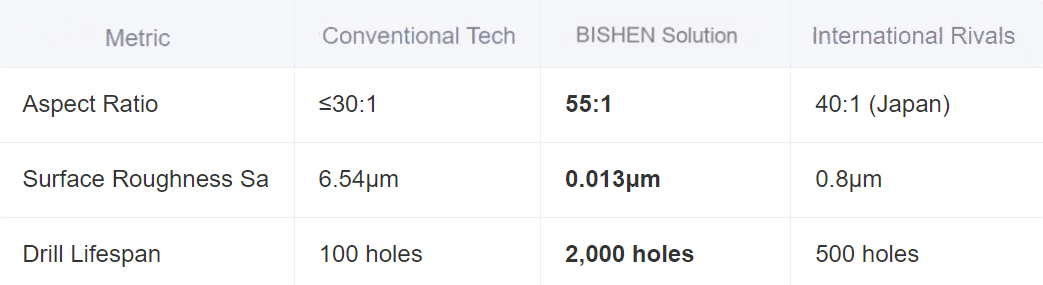

Technology Benchmarking (vs Ntiaj teb no Competitors)
Kev sib piv
Muaj kev cuam tshuam
Los ntawm Ib Qhov Case rau Ecosystem Transformation
Qhov kev vam meej no tau ua rau muaj kev cuam tshuam hla - kev lag luam kev tsim kho tshiab:
Semiconductor Localization:3D NAND ntawm - qhov kev ua haujlwm ua haujlwm tau nce 300%, txo Yangtze Memory cov nqi tsim khoom los ntawm 18%.
Photovoltaic nqi hloov pauv:Heterojunction solar cell rov qab-electrode microhole tawm los ntawm 72% mus rau 98%, txiav nqi los ntawm ¥0.4/W rau ib lub vaj huam sib luag.
Space Optics Advancement: Pab tau sub-10nm subsurface puas silicon microhole arrays rau Tuam Tshoj lub "Xuntian" chaw tsom teeb, boosting imaging daws teeb meem los ntawm ob qhov kev txiav txim ntawm magnitude.

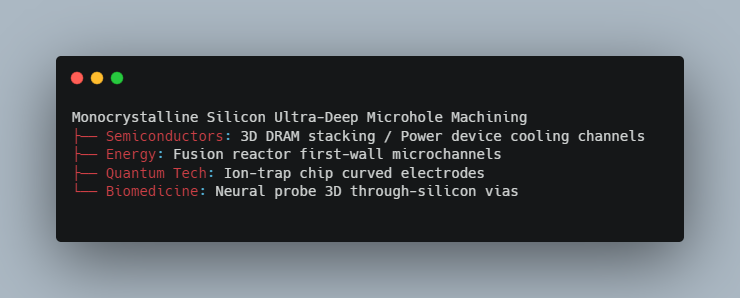

Technology Diffusion Map
MID profile:
MID pioneers precision hlau tsim rau me me -batch, siab- sib tov ntau lawm, integrating CNC machining (± 0.002mm), ntawv hlau fabrication, thiab muaj 3D luam ntawv. Tshwj xeeb hauv cov khoom siv hluav taws xob, kev kho mob, thiab cov khoom siv hluav taws xob tshiab, peb xa cov khoom siv nrog AI- tsav kev tswj kom zoo (tus nqi tsis raug<0.5%) and ultrasonic-assisted processes (Ra ≤0.4μm). Our agile production systems slash lead times by 40% while reducing costs 30-50%, empowering clients from prototyping to volume scaling with ISO-certified precision.
